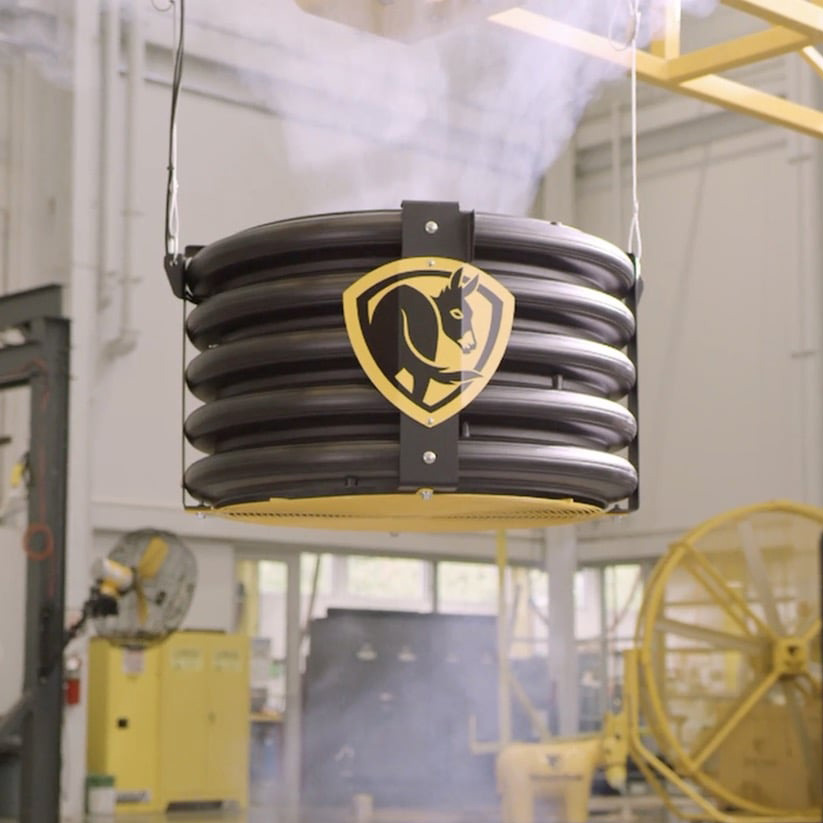

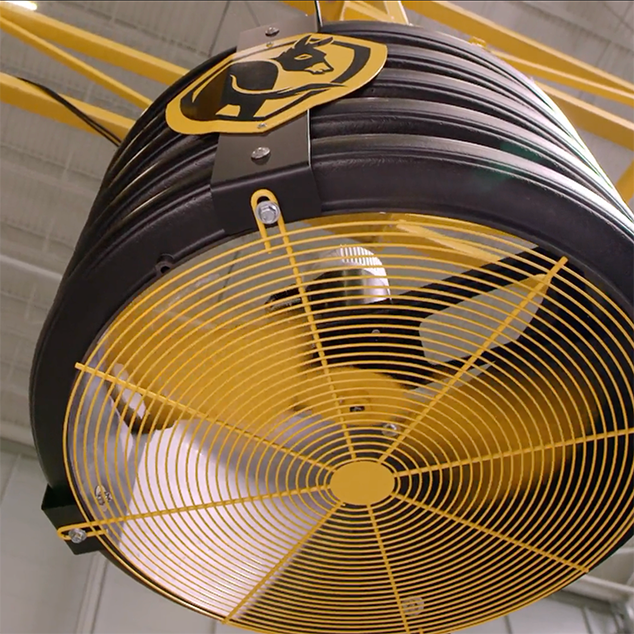

Hornet Destratification Fan

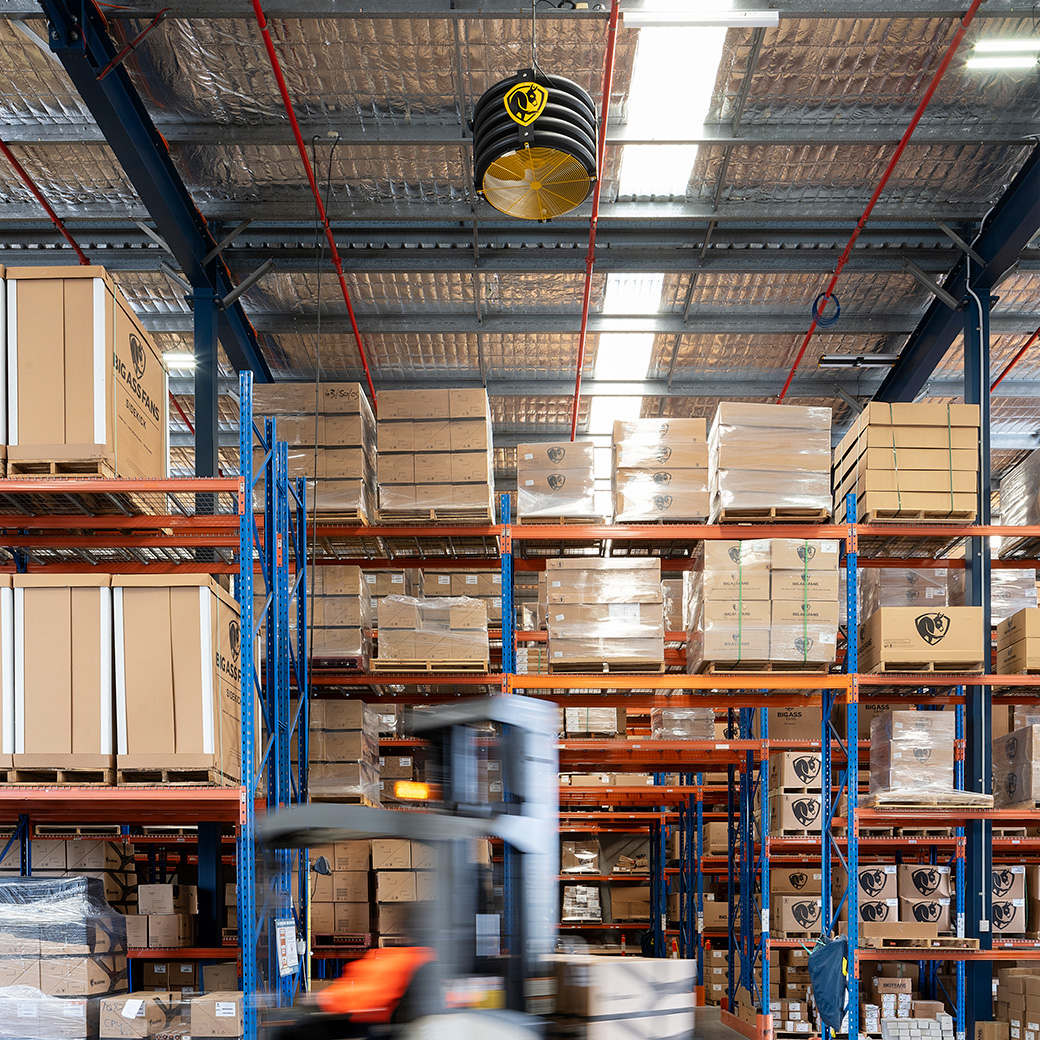

The Hornet destratification fan brings targeted airflow to congested and hard-to-reach areas. Ideal for spot-cooling in between racking and shelving, it also effectively destratifies large spaces with significant temperature differentials.
Why Choose the Hornet Destratification Fan?
Worker Comfort & Productivity: Hornet’s powerful airflow reaches up to 40 meters away, providing fast heat relief.
Low Operational Costs: Save money with energy-efficient cooling and reduce strain on HVAC systems by breaking up hot/cold spots.
Durability You Can Trust: Built for tough warehouse conditions with an IP65-rated steel construction.
Simple Setup & Maintenance: Spend less time setting up and more time enjoying the results.
- Durable Motor: Features a 1/3 hp motor and an IP55rating for protection against dust and water jets.
- Durable Construction: IP65-rated steel construction to withstand demanding warehouse conditions.

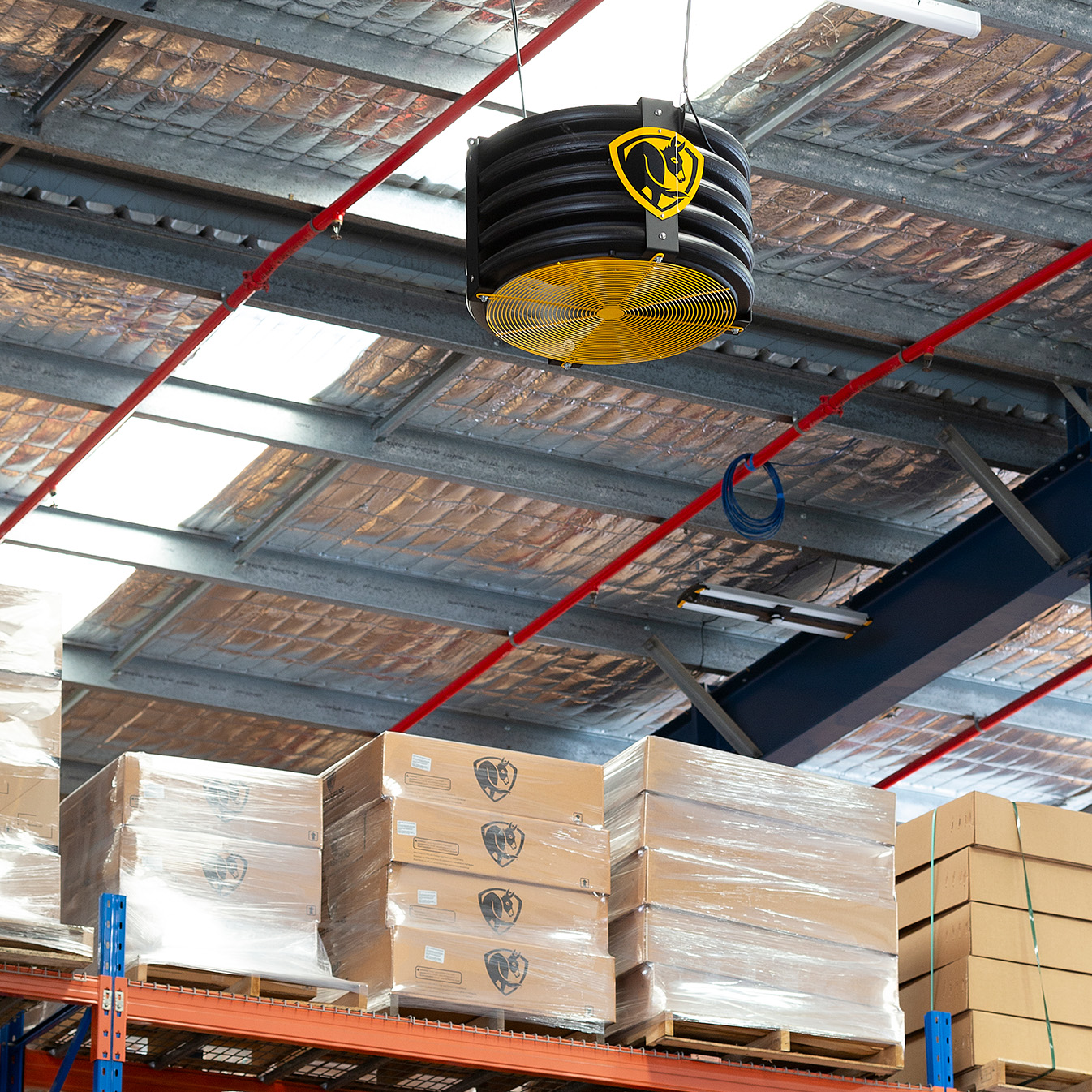

- Cooling Where it’s Needed: Direct airflow to those hard-to-reach spaces with Hornet’s small footprint.
- Energy Efficient: Hornet’s high-performance motor minimises energy consumption without compromising on comfort.
Hornet’s robust, energy-efficient motor delivers exceptional airflow while keeping energy consumption minimal.
- Occupancy Sensors: When paired with the optional BAFCon® controller, Hornet’s patented occupancy sensors automatically adjust fan speeds for optimal efficiency.
- Energy-Efficient Motor: Consumes significantly less power than conventional alternatives.

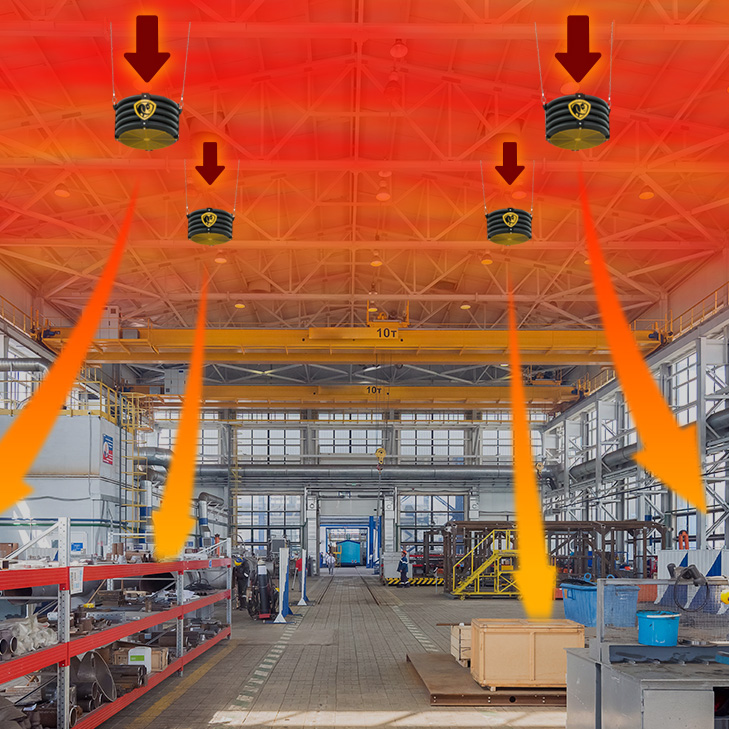

- Winter Destratification: Hornet pulls warm air down from the ceiling cavity to occupant level, ensuring a consistent indoor climate and reducing heating costs.
With the Hornet destratification fan, you’ll get targeted airflow that evens out temperature layers with minimal operational costs – delivering year-round comfort and energy savings.
Discover the full specifications including weight, height, airflow output and sound level in the Hornet Destratification Fan Specification Sheet
Dimensions and Weight
Diameter: 30 inches (76 cm).
Height: 20.7 inches (52.6 cm)
Weight: 78 lbs (35.4 kg), not including mounting cables or accessories.
Performance
Motor Power: 1/3 HP (0.746 kW) for powerful and consistent airflow.
Speed Range: Up to 1,302 RPM for effective cooling.
Sound Level: Operates at 71 dBA at maximum speed, balancing performance and noise.
Power Requirements
Input Voltage: Available in 100–120 VAC or 200–240 VAC configurations.
Current Draw: 7.2 A at 100–120 VAC and 4.0 A at 200–240 VAC.
Power Consumption: Ranges from 38 W (minimum speed) to 367 W (maximum speed).
Construction and Durability
Frame: Heavy-gauge steel frame and hub
Housing: Vibration density high-density polyethylene housing

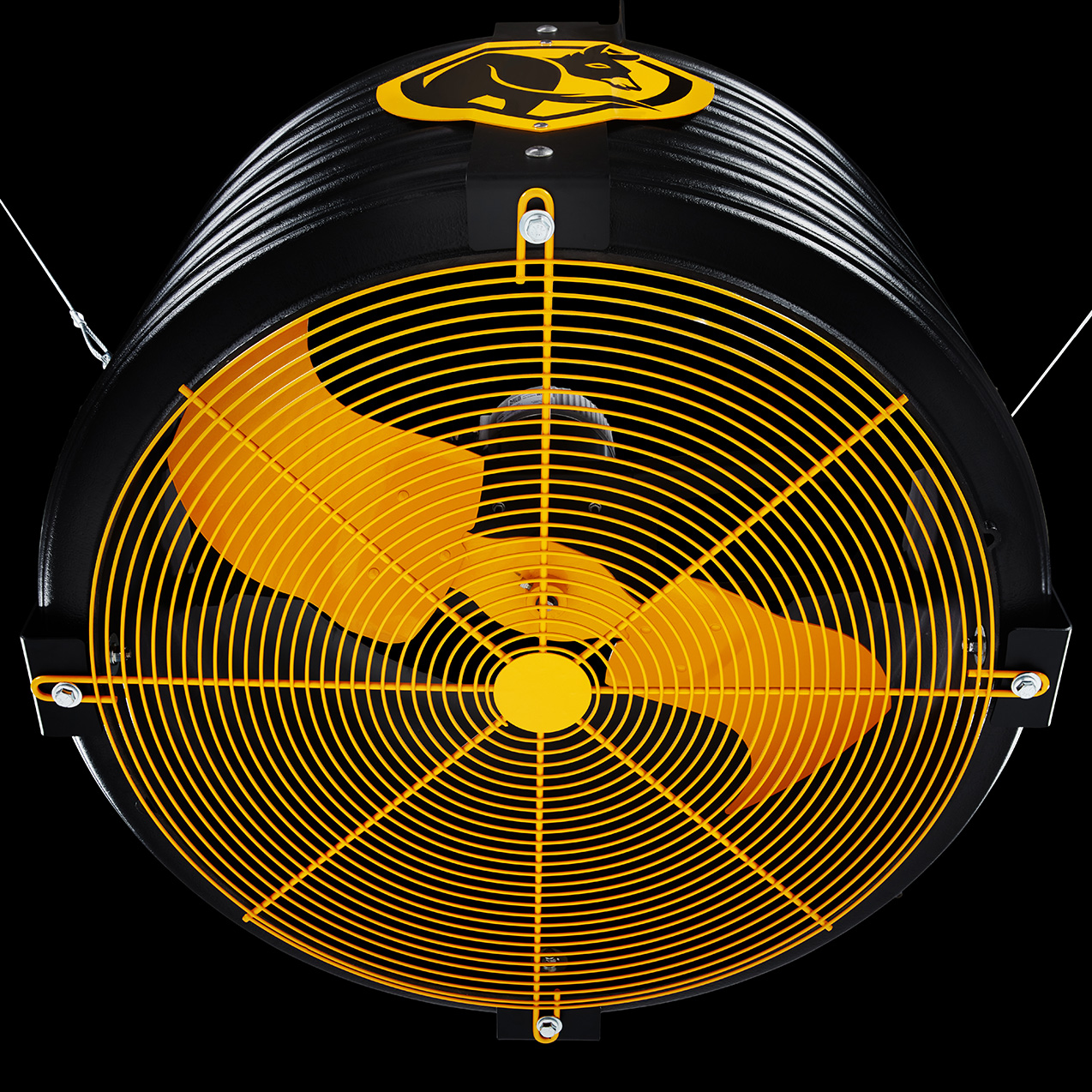

Safety Features: 1/8 inch (3 mm) steel spiral bottom guard
Mounting and Mobility

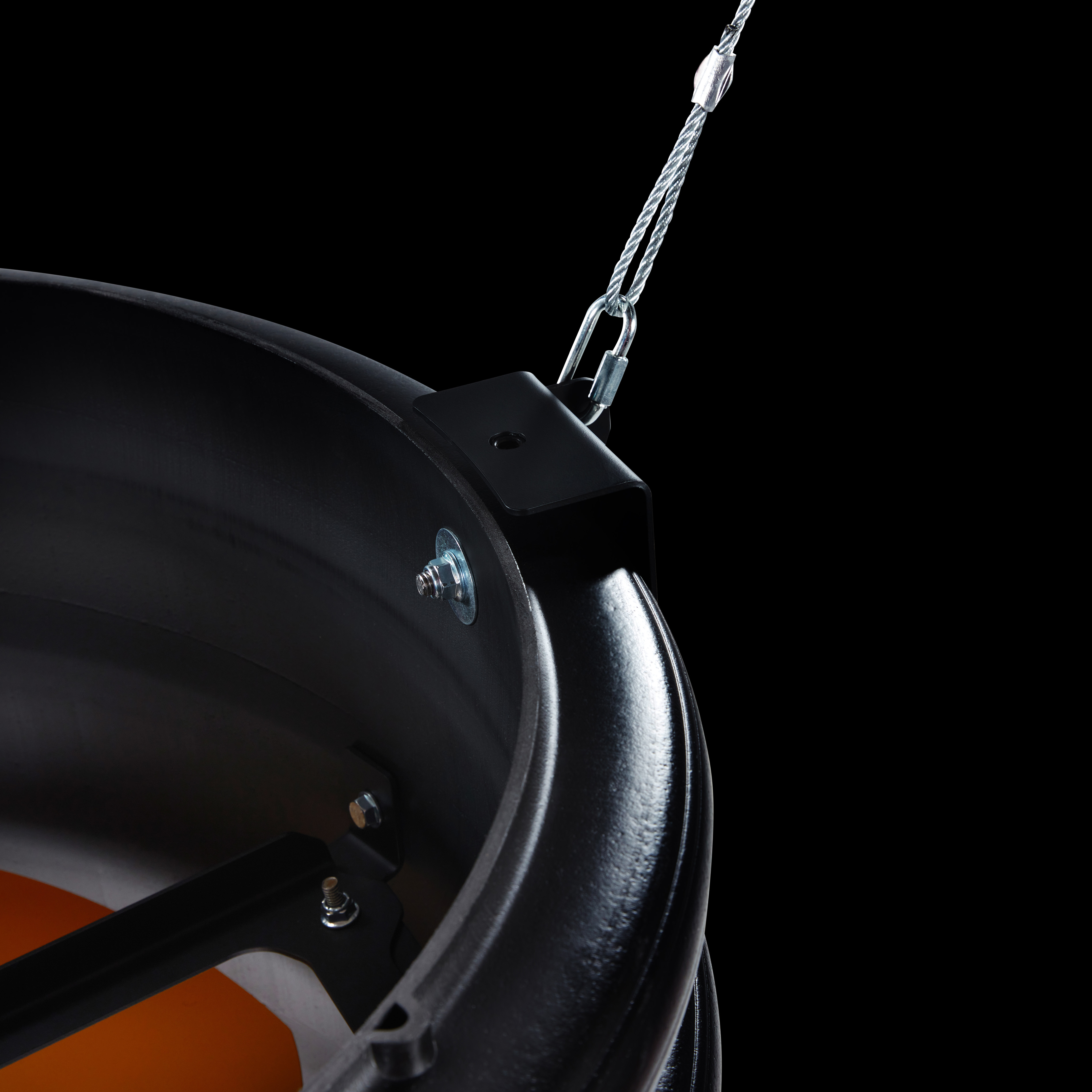

Options: Suspends from two #4 galvanised steel cables
Environment and Durability
Max Operating Temperature: 104°F (40°C)
IP Rating: IP55 for indoor use only
Hornet comes with up to 5 warranty. Our NZ service department is here to assist with any technical questions you may have.
Other products
You may also be interested in these fans.

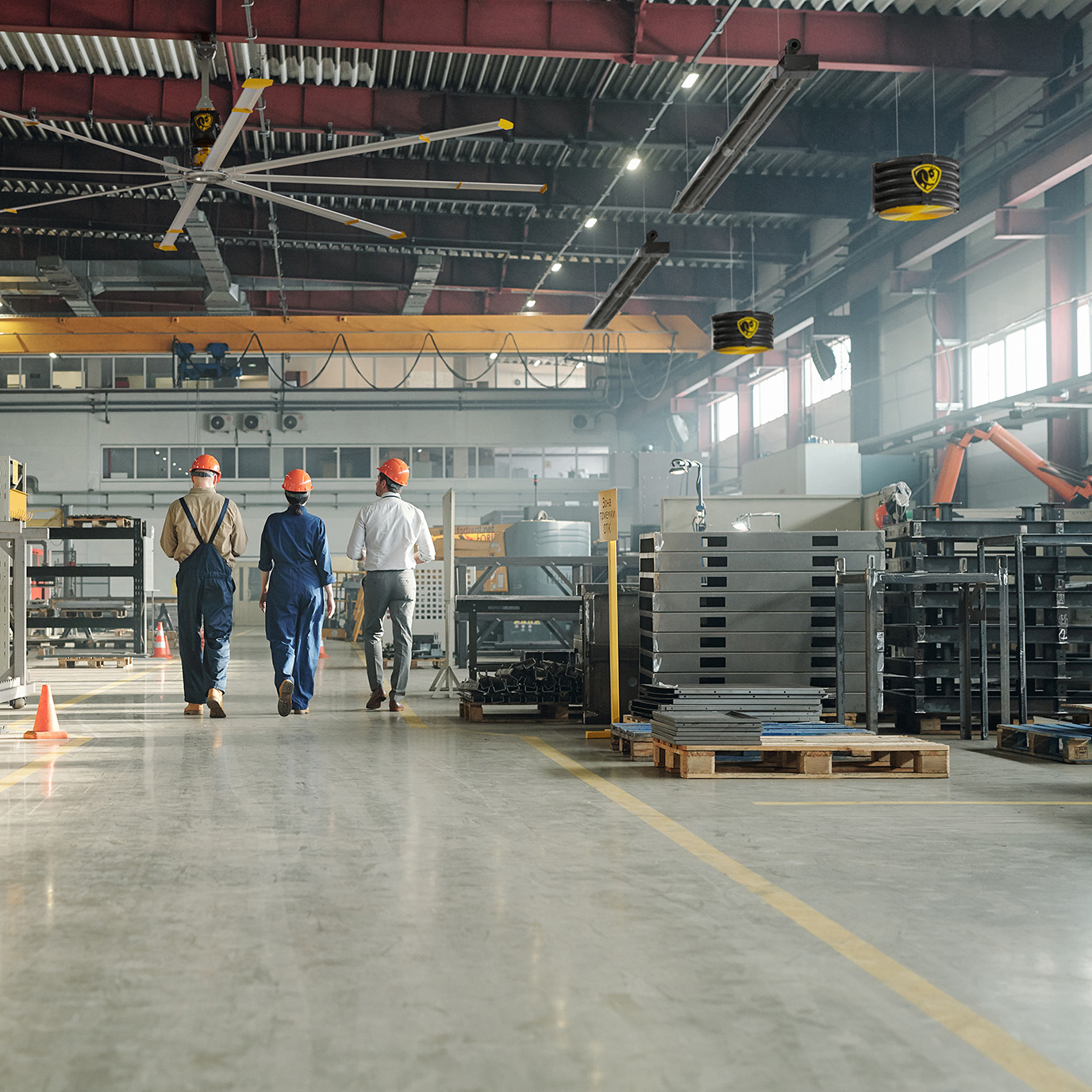

High performance design for demanding warehouse environments

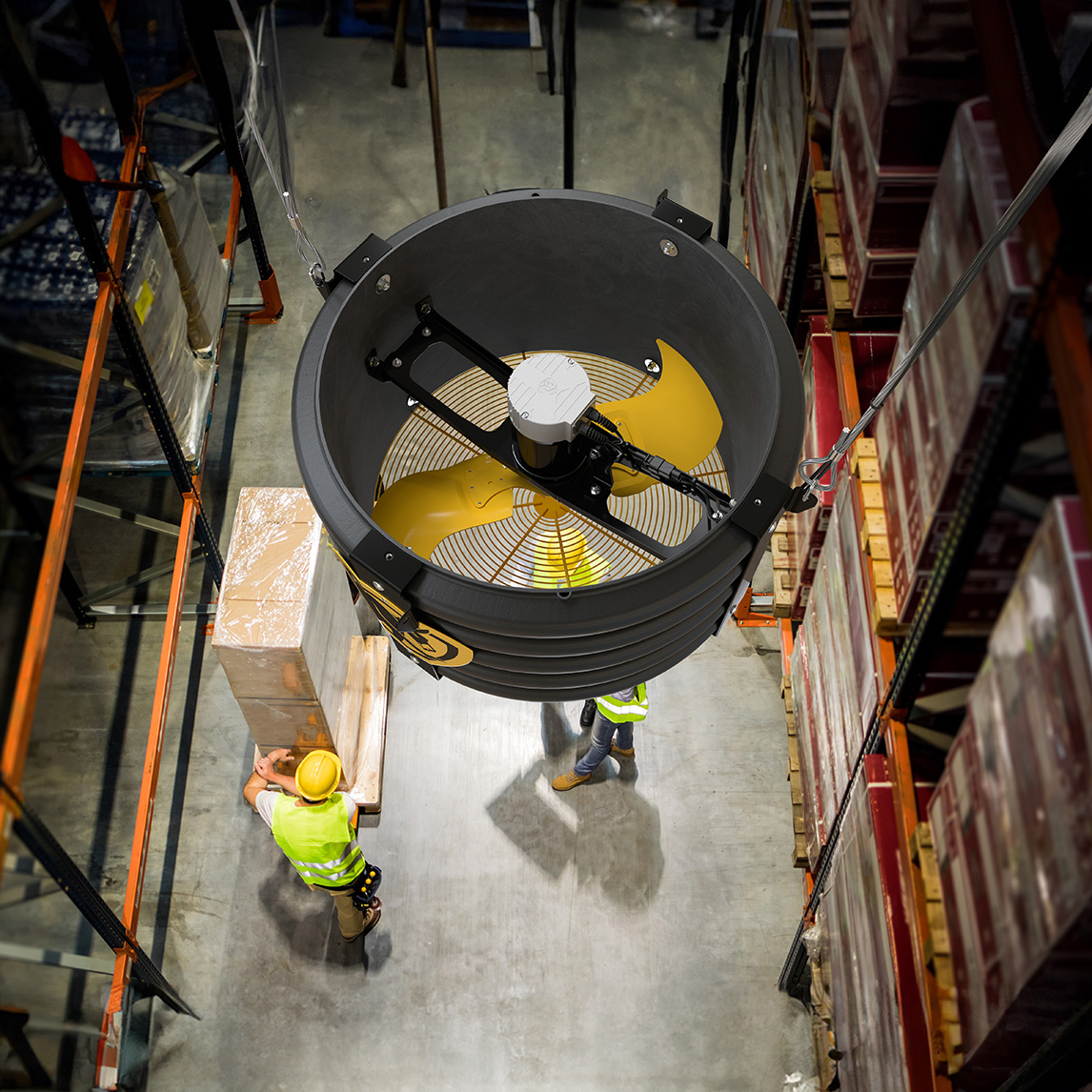

Targeted Airflow
Hornet delivers powerful, targeted cooling exactly where it is needed. Designed by industry leading airflow experts, it provides effective heat relief in congested or hard-to-reach workspaces – making it the perfect choice for robust, efficient spot cooling.
Durable by Design
Featuring a heavy-gauge steel frame, protective motor housing, and durable blades, Hornet has been engineered to thrive in demanding warehouse conditions. With premium quality and proven durability, it’s an investment that keeps delivering year after year.

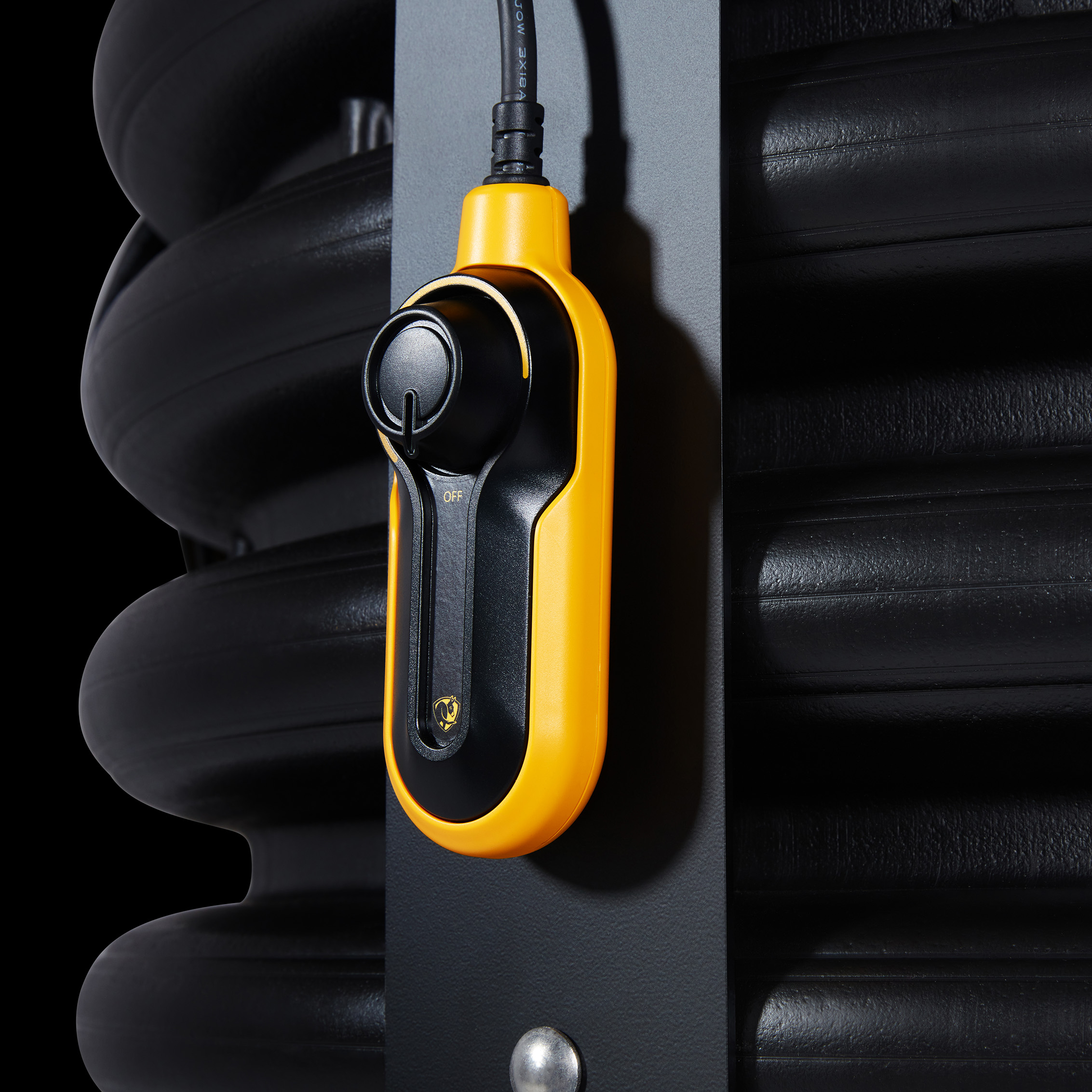

Advanced Control Options
When paired with the premium BAFCon® controller, Hornet integrates seamlessly with your building management system. This advanced functionality allows you to sync up to eight fans and maximise energy efficiency and comfort with the patented occupancy sensors.
